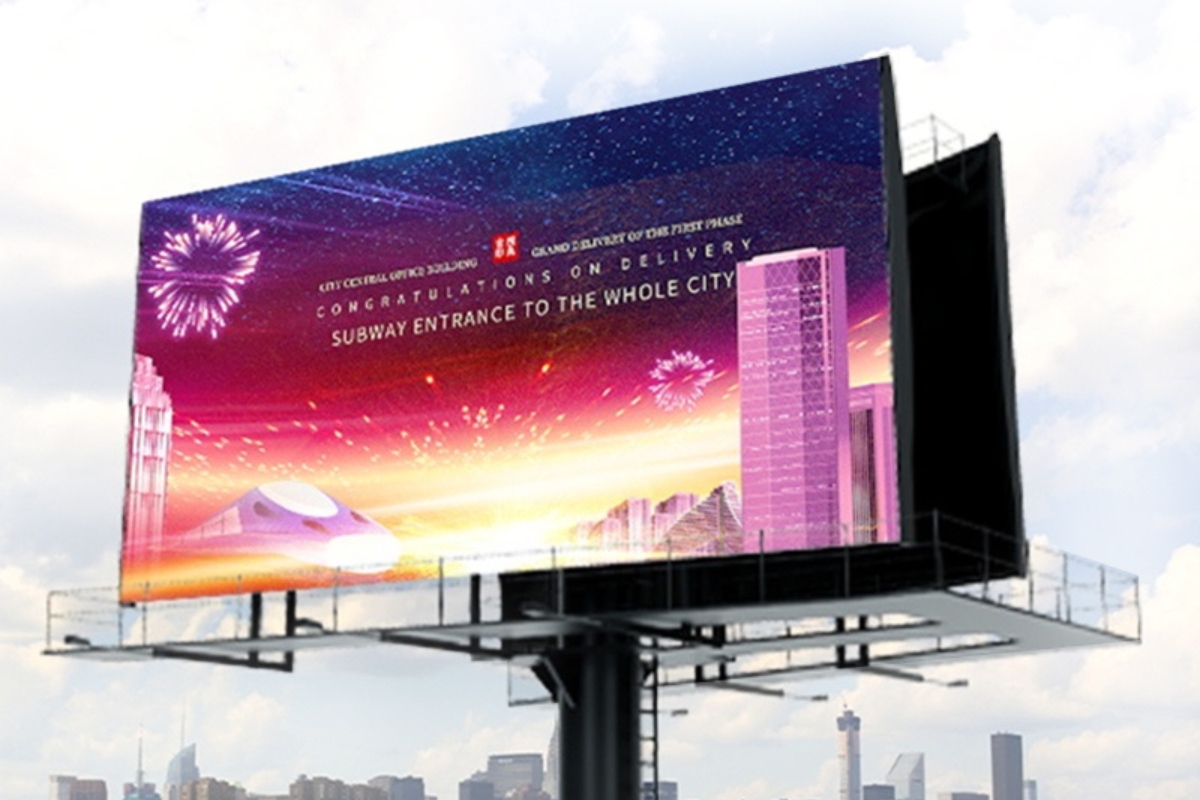

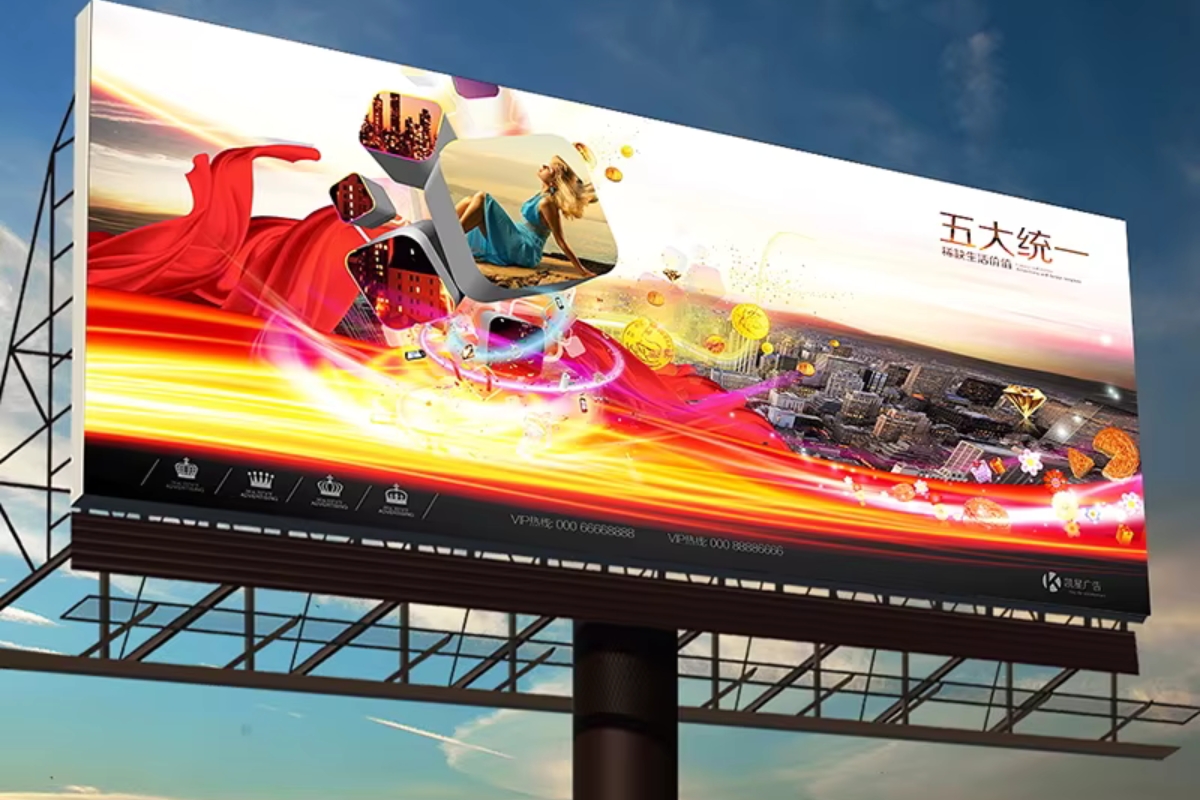

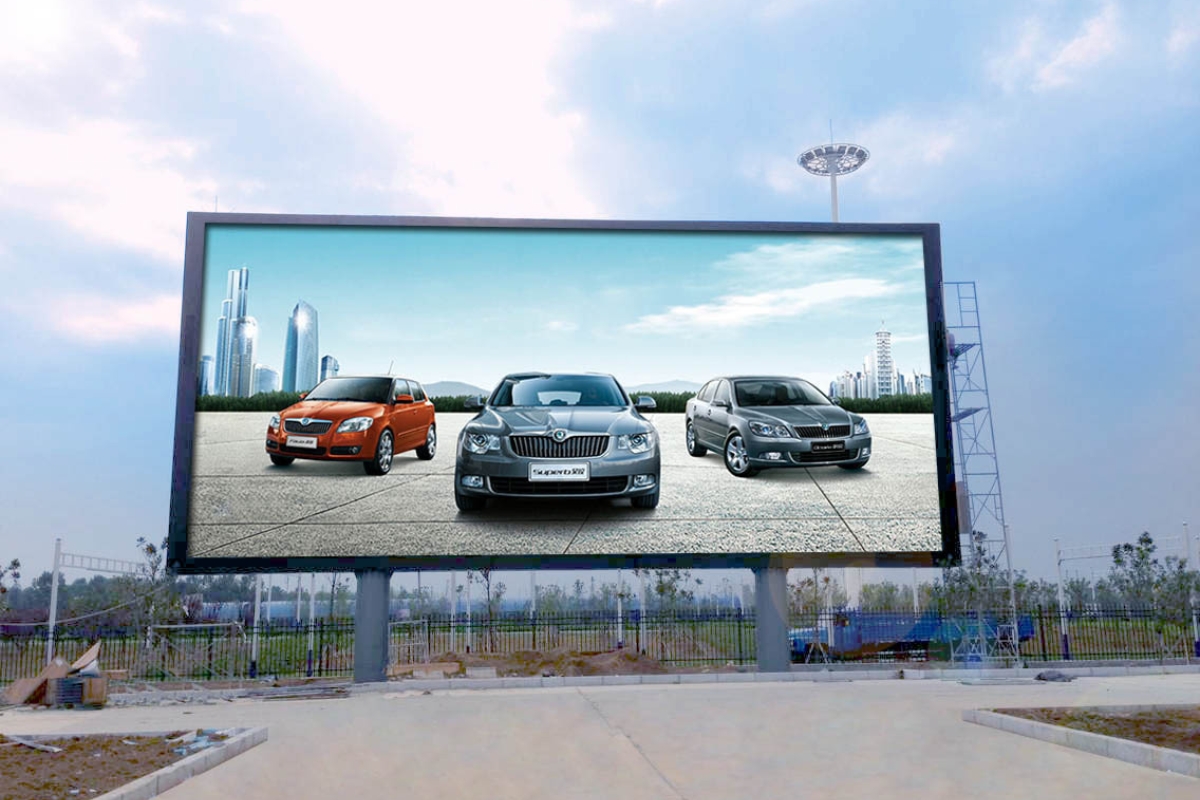

The P10 Outdoor LED Display Screen is a high-performance full-color LED display designed for large-scale outdoor advertising and digital signage. With a 10mm pixel pitch, it delivers excellent visibility from long distances, making it ideal for billboards, stadiums, highways, public events, malls, commercial buildings, and outdoor promotions.
This LED display features a brightness level of 6000 cd/m², ensuring clear visibility even in direct sunlight. With a resolution of 32 × 16 pixels per module and full-color output, it produces vibrant and sharp visuals. The wide viewing angles (140° horizontal and 120° vertical) allow content to be viewed clearly from multiple directions.
Built using SMD 3535 LED packages and powered by the reliable MBI 5020 drive IC, the P10 display ensures stable performance, color consistency, and long operational life. The 1/4 scan mode enhances image quality while maintaining energy efficiency.
The display is IP65 waterproof, making it suitable for harsh outdoor conditions such as rain, dust, and heat. Its rugged design ensures durability and long-term use in outdoor environments.
Versatile Applications for Modern Infrastructure
| Specification | Details |
|---|---|
| Product Type | P10 Outdoor LED Display Screen |
| Pixel Pitch | 10 mm |
| Resolution | 32 × 16 Pixels |
| Active Screen Dimensions | 320 × 160 mm |
| Brightness | 6000 cd/m² |
| Color | Full Colour |
| LED Package | SMD 3535 |
| Drive IC | MBI 5020 |
| Scan Mode | 1/4 Scan |
| Pixel Density | 10,000 dots per sq. meter |
| Best Viewing Distance | 12.5 Meters |
| Viewing Angle (Horizontal) | 140 Degrees |
| Viewing Angle (Vertical) | 120 Degrees |
| Power Supply | 220V |
| Working Voltage | 5V |
| Power Consumption | 841 Watt / Sq. Meter |
| Module Maximum Power | 31 W |
| Waterproof Grade | IP65 |
| Weight | 460 g |
| Wavelength (Red / Green / Blue) | 625 nm / 525 nm / 475 nm |
| Availability | In Stock |
